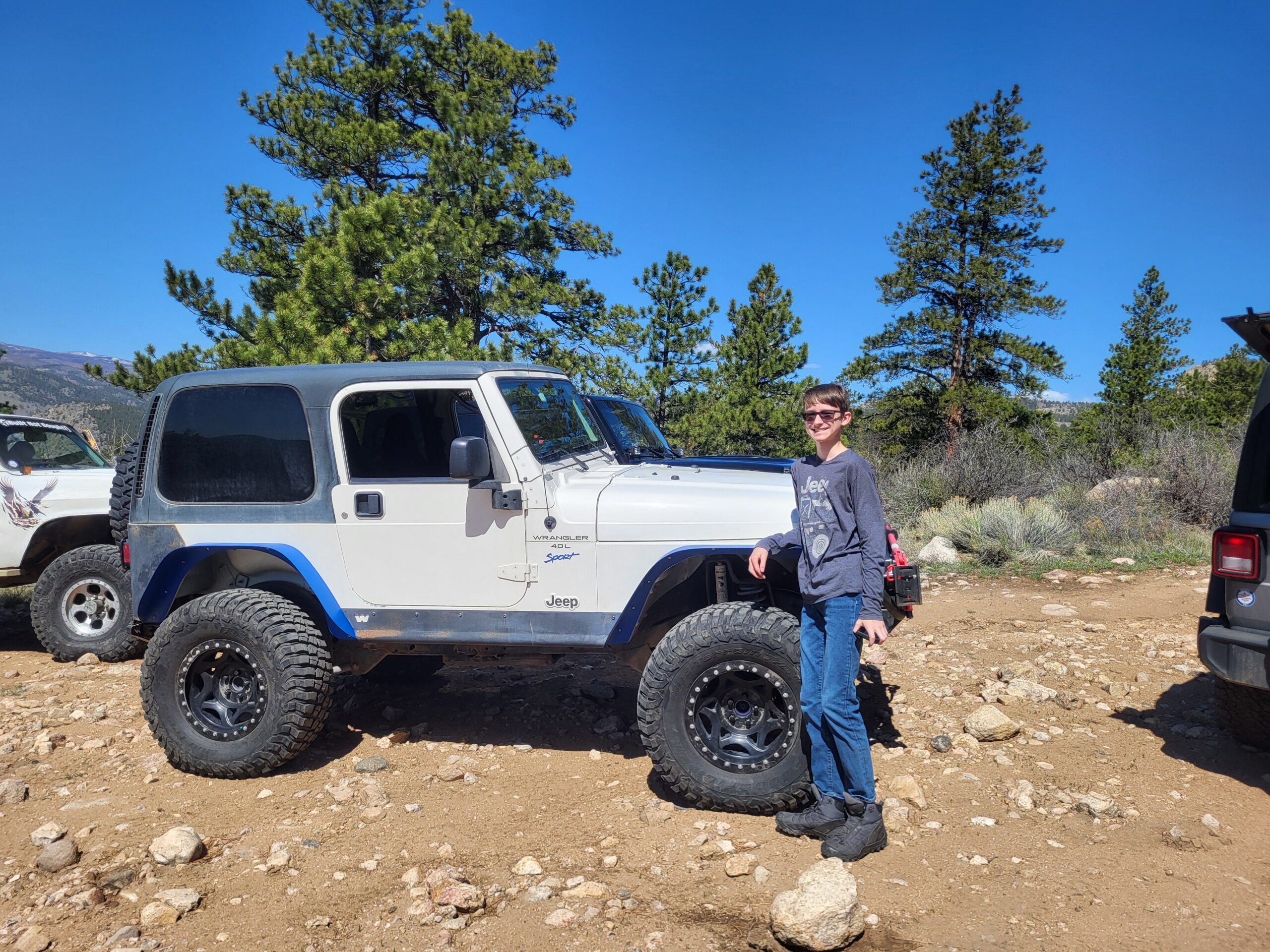

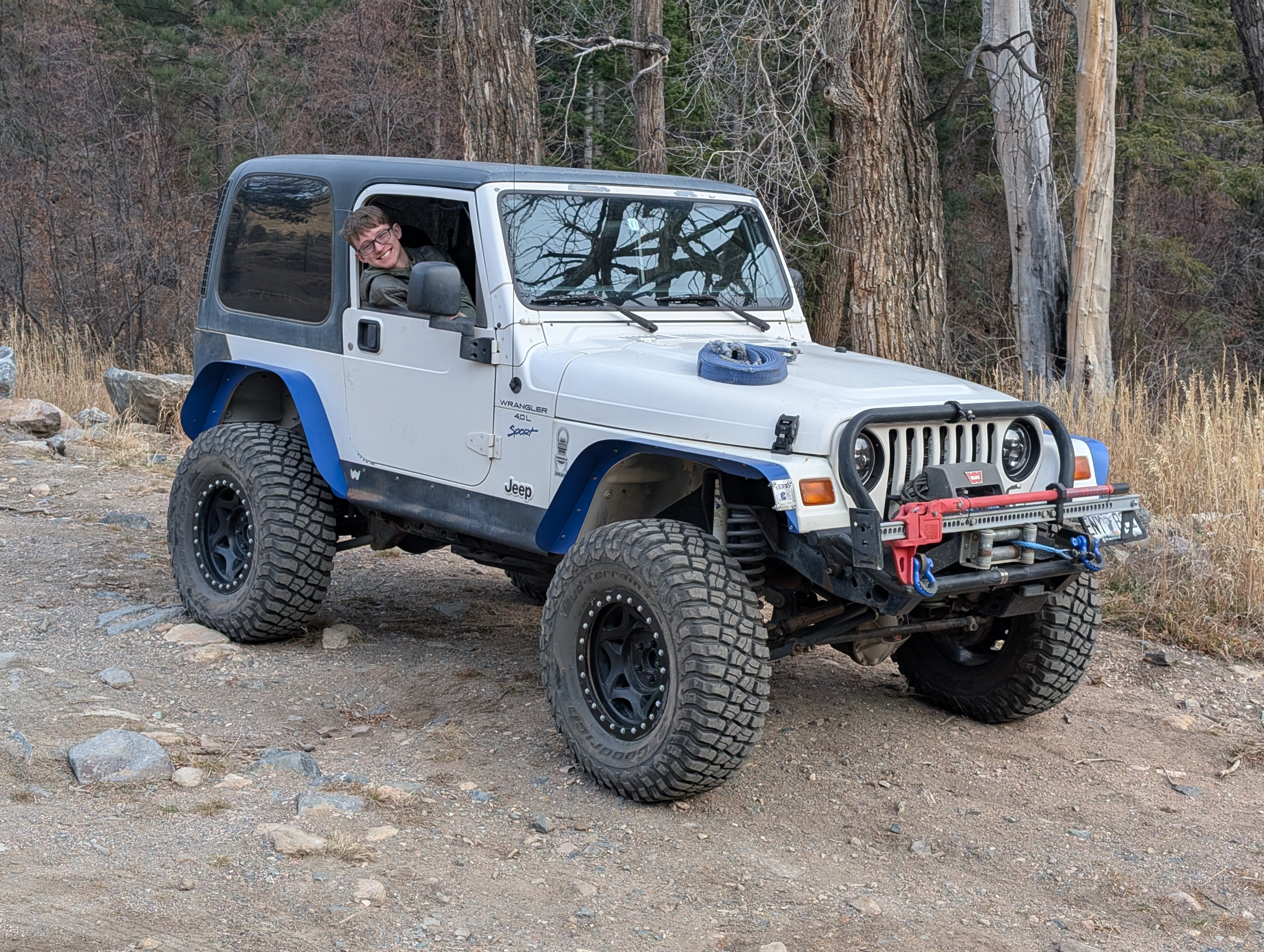

This page contains notes on our 1997 Wrangler, with its numerous aftermarket changes. We purchased this vehicle used in September 2024 with ~205,000 miles on it, had a lot of professional work done on it to get it safe and legal, and performed a lot of DIY work as well. I pieced together a lot about this vehicle’s past from documentation and receipts given to me by the previous owner, state emissions reports, Carfax information, inspecting the vehicle itself, and keeping track of the changes we have made since we purchased it. This was the first Wrangler I have owned, but we have since purchased a 2025 Wrangler (something more comfortable and reliable for off-road trails farther away). We plan to keep this 1997 Wrangler as an alternate/trail-bashing hobby vehicle.









The basics
- Jeep Wrangler Sport (1997)
- Body color: Stone White (1997)
- Fuel capacity: 19 gallons
- Weight: ~4,550 pounds with full fuel tank and typical gear loaded
Engine
- 6 cylinder, 4.0 liter (1997)
- Air intake system: Banks Power Ram-Air 41816 (GBE 41816) (2012)
- Distributor: brand/model unknown (2024, replaced by local shop)
- Ignition wire set: brand/model unknown (2024, replaced by local shop)
- Spark plugs: NGK V-Power (2024, replaced by local shop)
- Fuel injectors: replaced with rebuilt 4-hole fuel injectors from K suspension (2024, rebuilt, DIY replacement)
- Oil pressure sender/switch: replaced, brand/model unknown (2017), however previous records indicate Duralast PS271 (Autozone PN: 298844) (2011)
- Oil pan gasket: Mopar 3430 (53007568) (2009)
- Thermostat: 29309 (Checker Auto Parts PN: 86118803) (2008)
Transmission
- Automatic, 32RH (2012, replaced at 160,512 miles)
- Rear Main Seal: Mopar 4778126AB (2009, per documents, but assumed to be replaced in 2012 per transmission replacement)
- Transmission filter & pan gasket: Duralast TF127 (2024)
- Crankshaft position sensor: brand/model unknown (2024, replaced by local shop)
Suspension/lift
- Suspension lift kit: Rubicon Express 3.5″ TJ/LJ Super-Flex Short Arm Suspension RE7003 (2009)
- Body lift kit: Daystar KJ04508 1″ (2009)
- Shifter relocation bracket: Skyjacker JSRB231A (2009)
- Motor mounts: Mountain Off-Road JM600L MORE BombProof “Torsion” with 1″ Lift (2009)
- Front upper control arms: Rubicon Express Super-Flex RE3780 (2009)
- Rear upper control arms: Rubicon Express Super-Flex adjustable RE3783 (2009)
- Control arm bushings: Rubicon express RM42042 (2010)
- Spring spacers: Day 1.75″ poly (2009)
- Shocks: Rancho 5000X front and rear (2026)
Axles
- Dana 44, 216 RBI (Model 44) (front and rear), with 5.38 gears, front trusses/gussets, PowerStop brakes, and Poison Spyder differential covers (DIY replacement of the Dana 44s we originally purchased the Jeep with)
- Front: RCV shafts and a factory locker
- Rear: Chromoly shafts with an Eaton E-Locker
Wheels/tires
- Wheel spacers: Spidertrax WHS002 1.25″ (2009)
- Lug nuts: MIKKUPPA 1/2″-20, ASIN: B08254GVT5 (2024)
- Wheels: 17X8.5″ Walker Evans Racing, model unknown (2003, estimate)
- Tires: BFGoodrich KM3, 35X12.50R17, load range E, DOT: 3320 (2020)
- Wheel/tire combined weight: 110 pounds each
- Spare tire wheel: 16×8 us black daytona 5×4.5 4.25bs (2010)
- Tire carrier: Warn Spare Tire Carrier for ’87-’06 Jeep TJ & YJ 64337 (2009)
Body/exterior
- Headlights: LX-LIGHT 7” Round Black LED, UPC: 736950408718 (2024)
- Headlight bezels: Hooke Road QP.MMR-1751 (2024)
- Fuel cap: replaced, brand/model unknown (2024)
- Fuel cap cover: RERPRO locking, black, TJ9 (2024)
- Exterior door handles: replaced, brand/model unknown (2024)
- Window door seals: custom, using M-D Building Products Door Sweep, 43302 (2024)
- CB antenna mount: FireStik SS-204A with 18 foot coax cable (2009) – will be removed eventually
- Fender flares: Oedro, UPC: 840332396972, painted Rustoleum deep blue and clear coat (2024)
- Rocker guards/sliders: Warn, PN: 63002 (2009)
- Corner guards: Genright shorty rear CNR-2001 (2009)
- Front bumper: Aftermarket, unknown
- Winch: Warn brand with isolator (PN: DAY KU70039BK) (2009)
- Rear bumper: Warn Rock Crawler Rear Bumper for Jeep TJ Wrangler 65508 (2009)
- Windshield: replaced, brand/model unknown (2011)
- Aftermarket roll cage (need to research, but we believe the last owner performed this upgrade, telling us that it is supposedly stronger than the stock roll cages)
Windshield washer
- Pump: TRICO, 11-528 (2024)
- Water lines to sprayers: replaced, brand/model unknown (2024)
- Spray nozzles: Hypersonic, HP6403 (2024)
Cooling
- Radiator: replaced, brand/model unknown (2010)
- Radiator hose kit: Mishimoto MMHOSE-WR6-97BK (2024)
- Water Pump: A5533136 (Checker Auto Parts PN: 7014699) (2008)
- Water outlet gasket: 702 (Checker Auto Parts PN: 6574503) (2008)
- Fan clutch: replaced, brand/model unknown (2015)
Evaporative emissions control (EVAP)
- Vapor canister: Duralast VC120 (2024)
- Purge valve: Duralast PV300 (2024)
Exhaust
- Manifold kit: brand/model unknown (2024, replaced by local shop)
- Catalytic converter (and 2 oxygen sensors): brand/model unknown (2024, replaced by local shop)
- Muffler: Banks Monster Exhaust (2012)
Battery
- Need to document, check manufacture date, etc.
- Terminal protectors: Ampper brand (2024)
Steering
- Steering box: AGR Performance Super Box 2, 255352 (2012)
- Steering box skid plate: Genright SBS-2001 (2009)
- Steering pump: AGR Super Pump, 812256 (2012)
- Power steering hoses: Old O’Reilly PNs: 80063 and 80293? (need replacing) (2013)
- Pitman arm: 4087 (52038337) (2013)
- Tie Rod & Drag Link Assembly: Rock Jock Currectlync CE-9701 Heavy Duty (2009)
- Drag link end: Rock Jock Currectlync CE-9701DLR (2012) – Assumed to replace part of assembly from 2009
- Track Bar: JKS OGS126 (2026, replaced when the axles were upgraded)
- Sway bar disconnects: Rubicon Express Gen2 (2009)
- Steering wheel clockspring: Dorman Airbag Clockspring 525-118 (2024)
Brakes
- PowerStop brakes
- Master cylinder: BrakeBest – Remanufactured (O’Reilly PN: 10-2708) (2012)
- Power brake booster: BrakeBest – Remanufactured (O’Reilly PN: 54-73198) (2012)
- Rear brake hose: Goodridge USA D-RBL-48 Braided Stainless (2012)
- Front ceramic disc pads and rotors: brand/model unknown (2024, replaced by local shop)
Interior
- Seat covers, front and rear: Gearflag TJ127BLK (2024)
- Center console cover: Diver Down 141672401 (2024)
- Steering wheel cover: PINCTROT, UPC: 761344818989 (2024)
- Stereo head: BOSS Audio Systems BVCP9700A- FL (2024)
- Speakers: Blaupunkt GTx 462 (4X6″, 35W RMS, 150W PEAK, 80Hz-22Hz) & 542 (5.25″, 40W RMS, 170W PEAK, 70Hz-22Hz) – mylar tweeters (2009)
- Communications radio: Midland MXT275, GMRS (2024)
- Air vent rocker switch panel: Daystar KJ71032 (2009)
- Front and rear locker rocker switches: Daystar red light, 20 amp, single Pole, KU80014 (2009)
- Door limiting straps: JoyTutus (2024)
- Entry guards: Rugged Ridge All-Terrain, 11216.22 (2024)
- Sun visor kit: Omix-Ada 13313.09 (2024)
- Phone holder: JeCar dash mount with storage tray JCS263 (2024)
Miscellaneous
- Transfer case skid plate: Skyjacker kit SP28 (2009)
- AC compressor: IC# 496A (2008) – Part of documents, but can’t find a part reference that matches this (also haven’t tested AC system yet)
- Rear driveshaft: Tom Wood’s double-cardan shaft for a TJ with slip yoke eliminator, and the axle end uses a Spicer 5-134X 1310-to-1330 conversion U-joint (2026, replaced as part of the axle upgrade)
Notes
The only thing that hasn’t been upgraded to the Rubicon trim level equivalent or better on our ’97 Sport is the transfer case. We have the stock Sport trim NP231, which is less robust and isn’t geared as low as the NP241OR. This is just something for us to consider if we ever “need” to (or want to) upgrade the transfer case due to failure or for the lower gearing. However, the NP231 is regarded as a good transfer case, we haven’t had any issues with it, and I have been happy with the overall balance of our gearing for paved road and offroad/wheeling use (we also now have 5.38 gearing in the axels). All that said, we keep an eye out for good deals on parts that we may eventually replace.
TODO list:
- Inspect/replace 1″ body lifts (somebody in a forum post said the body lift components on our Jeep are prone to failure – they look newer than the documentation I have and look OK to me, so I might get a second opinion from a local 4×4 shop)
- Replace fuel injector wires and harnesses (pigtails) – the wire insulation is starting to crack and fall apart
- Repair dome light operation (wiring to the hard top is not tied in correctly, but I don’t know if this is related – I suspect this is wired via some route that follows the aftermarket roll cage)
- Inspect/repair operation of rear window defrost system
- Inspect/repair operation of rear window wiper system
- “Fix” speedometer/odometer (it’s not accurate on 35s with the new 5.38 axel gearing). I have a speedometer gear to install, but I need to verify it’s still the right one to use after swapping the axels.
- Test/install soft top (OEM soft top with frame purchased used in November 2024, came off another ’97 Wrangler)
- Replace power steering pressure hose (per PBI recommendation)
- Replace power steering return hose (per PBI recommendation)
- Inspect air conditioning system (never used/tested since it has never been needed)
- Flush power steering fluid
- Inspect serpentine belt
- Inspect/resolve issue with fuel tank skid plate making contact with rear differential cover (noticed slight scuff mark – something to look at when cycling suspension). I deferred this when swapping the axels (which have a different diff cover and some different mounting hardware/geometry), but I should look at it again.
